TS21 series oil drill collar special machine tool
The tool feed adopts servo drive system to realize stepless speed regulation. The machine bed is made of high-quality cast iron casting, with strong rigidity and good precision retention. The bed guideway is quenched and treated for high wear resistance and good precision retention, and the machine bed is rigid and good precision retention. The spindle speed range is wide, and the feeding system is driven by AC servo motor, which can adapt to the needs of various deep hole machining processes. Hydraulic device is adopted for tightening oiler and tightening workpiece, and the meter display is safe and reliable. Widely used in mechanical hydraulic cylinder, special cylinder, coal cylinder, hydraulic machinery, high pressure boiler tube, petroleum, military, electric power, aviation and other industries.
The machine tool is a series of products, but also according to user needs to provide a variety of deformation products.

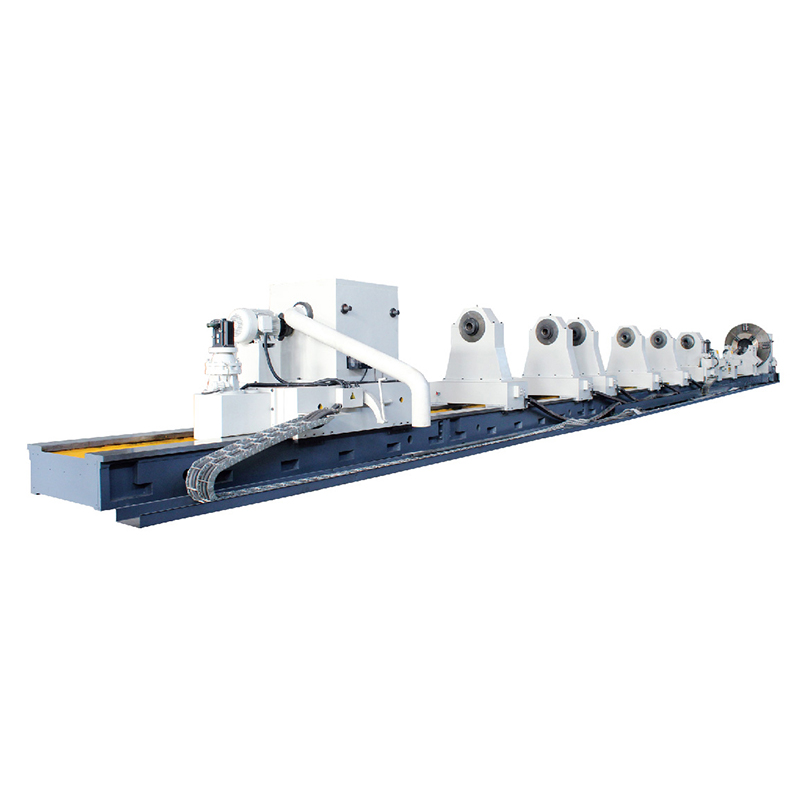

product drawing
The Main Technical Parameters
| The scope of work |
|
| Drilling diameter range | Φ30～Φ100mm |
| Maximum drilling depth | 6-20m (one size per meter) |
| Chuck clamping diameter range | Φ60～Φ300mm |
| Spindle part |
|
| Spindle center height | 350mm |
| Spindle speed range of the headstock | 42～670r/min; 12 levels |
| Drill pipe box part |
|
| Taper hole at the front end of the drill pipe box | Φ100 |
| Taper hole at the front end of the spindle of the drill pipe box | Φ120 1:20 |
| Spindle speed range of the drill rod box | 82～490r/min; level 6 |
| Feed part |
|
| Feed speed range | 0.5-450mm/min; stepless |
| Fast moving speed of pallet | 2m/min |
| Motor part |
|
| Main motor power | 30kW |
| Drill pipe box motor power | 30KW |
| Hydraulic pump motor power | 1.5kW |
| Fast moving motor power | 5.5 kW |
| Feed motor power | 7.5kW |
| Cooling pump motor power | 5.5kWx4 (4 groups) |
| Other parts |
|
| Rail width | 650mm |
| Rated pressure of cooling system | 2.5MPa |
| Cooling system flow | 100, 200, 300, 400L/min |
| Rated working pressure of hydraulic system | 6.3MPa |
| The lubricator can withstand the maximum axial force | 68kN |
| The maximum tightening force of the oil applicator to the workpiece | 20 kN |
| Optional ring center frame | |
| Φ60-330mm (ZS2110B) | |
| Φ60-260mm (TS2120 type) | |
| Φ60-320mm (TS2135 type) | |
